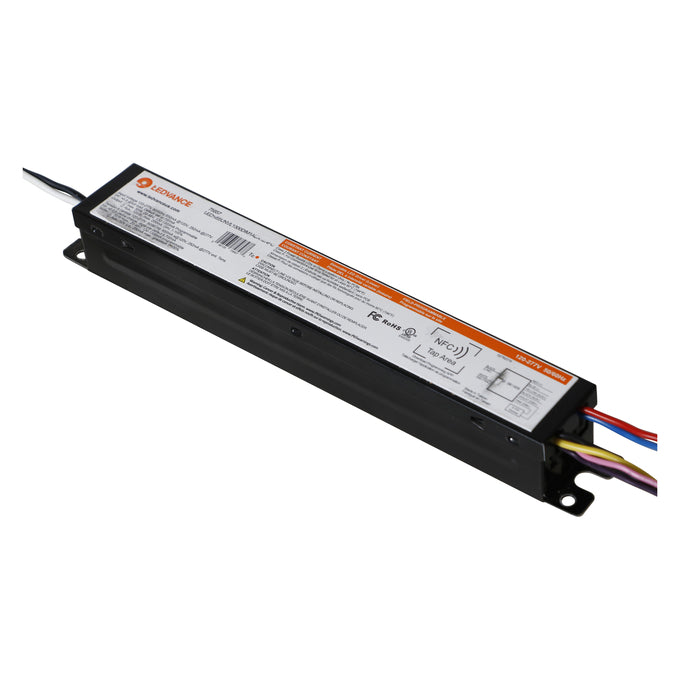

LED Driver - 120-277V - 100-1000 mA, 36W, 0-10V Dimmable - LEDrv55UNVL1300DIM1AUX12NFC

Key Specification

• Wattage: 55 W
• Input Voltage: 120–277 V
• Supply Frequency: 50–60 Hz
• Dimming: Yes (0–10V, 1–100% range)
• Output Type: Constant Current (130–1300 mA programmable, field-programmable)
• Auxiliary Output: 12V AUX
• Technology: NFC (Near-Field Communication)
• Dimensions: 9.5" (L) × 1.22" (W) × 1.1" (H)
• Weight: 0.99 lb
• Number of Lamps: 1
• Protection Rating: IP20
• Protection Class: I
• Certifications: FCC, RoHS
• Type: Linear LED Driver

This 55W LED driver is built for reliable and efficient performance in a wide range of LED lighting applications. It operates on a universal 120–277V input and provides adjustable output current up to 1300mA for flexible compatibility. The integrated 0-10V dimming enables smooth and energy-efficient light control. With AUX 12V output and NFC programmability, it allows easy setup and advanced system integration.

Common Applications

• Commercial lighting such as offices, retail stores, and showrooms
• LED panels, troffers, and downlighting systems
• Architectural and decorative lighting installations
• Industrial and warehouse lighting setups
• Retrofit and new LED fixture designs

Key Features

• Wide input voltage: 120–277V for versatile installations
• Adjustable output current up to 1300mA for various LED loads
• 0-10V dimming for smooth and precise light control
• Integrated 12V AUX output for sensors and smart controls
• NFC programmability for quick and easy configuration
• High efficiency and durable design for long-lasting performance
