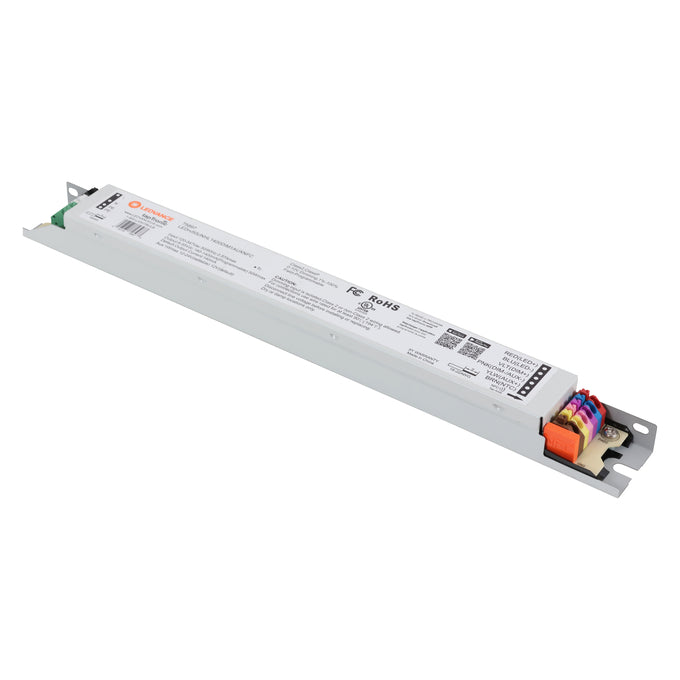

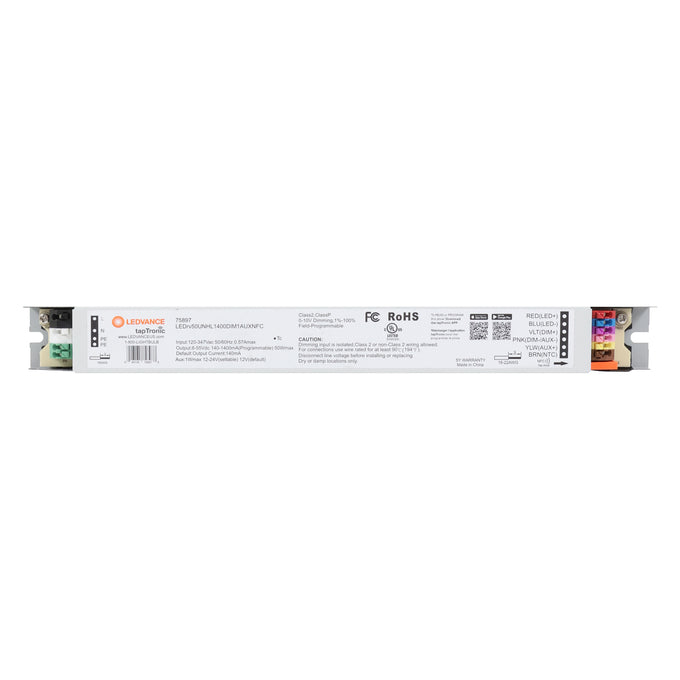

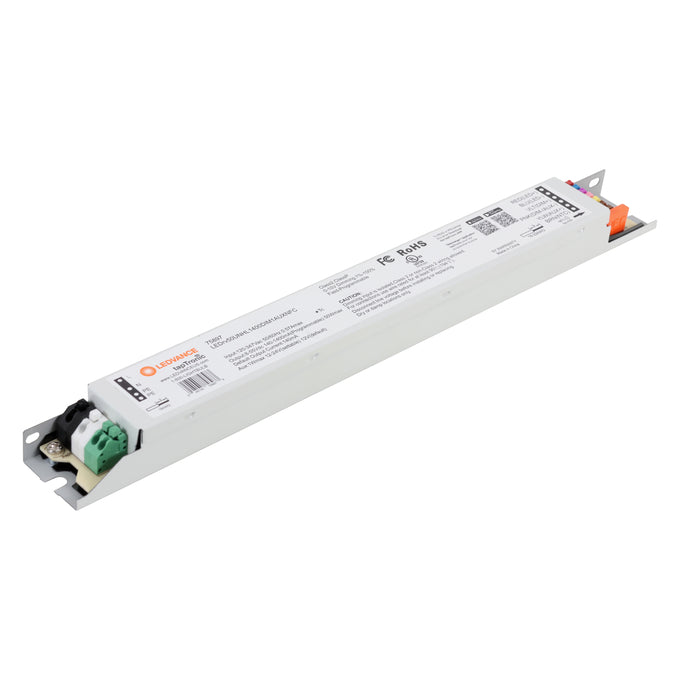

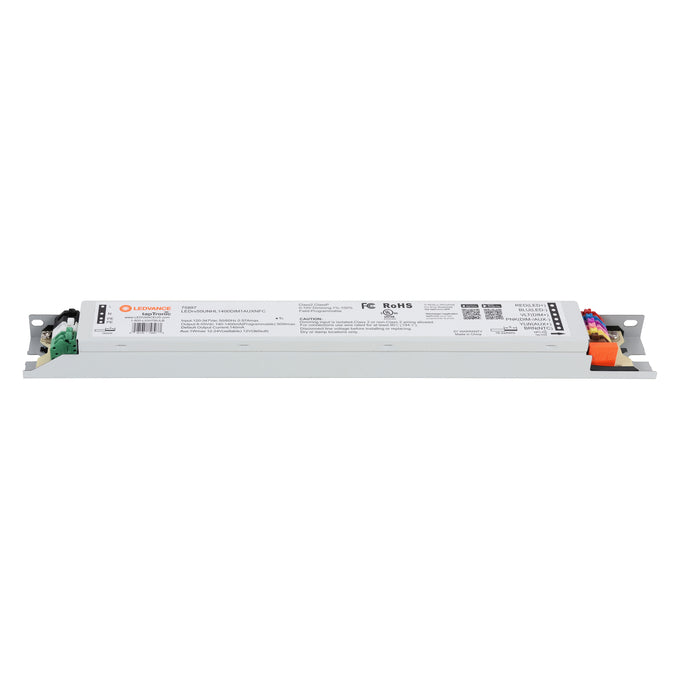

LED Driver – 50W, 120-277V, Dimmable – LEDrv50UNHL1400DIM1AUXNFC

Key Specification

• Wattage: 50 W
• Voltage Range: 120–347 V
• Supply Frequency: 50–60 Hz
• Dimming: Yes
• Dimming Type: 0–10V (1–100% range)
• Output Current Range: 140–1400 mA (programmable)
• Number of Lamps Supported: 1
• Dimensions: 11.02 in (Length) × 1.18 in (Width) × 0.83 in (Height)
• Weight: 0.46 lb
• Product Type: Linear Constant Current LED Driver
• Certifications: RoHS, FCC

The LED Driver – 50W, 120-277V, Dimmable provides reliable and efficient power delivery for LED lighting systems. It ensures stable current output, helping maintain consistent brightness and performance.
With a wide voltage range, it offers excellent compatibility for a variety of lighting installations. The dimmable feature allows flexible light control to suit different environments and applications.
This driver is designed for long-term performance, improving LED efficiency while reducing energy consumption and maintenance needs.

Ideal Applications

• Commercial and office lighting systems
• LED panel lights and downlights
• Retail and display lighting
• Residential lighting installations
• Architectural and decorative lighting
• Retrofit and new construction projects

Features & What’s Included

This LED driver is engineered to deliver stable and efficient power to LED fixtures with a 50W output capacity. It supports dimmable functionality, allowing users to adjust brightness levels based on lighting requirements and energy preferences. The driver ensures smooth, flicker-free performance, which enhances visual comfort and provides consistent illumination in various environments.

Designed for versatility and durability, it operates on a wide input voltage range of 120-277V, making it suitable for both residential and commercial applications. It helps protect LED fixtures from voltage fluctuations, extending their lifespan and reducing maintenance costs. Its compact and robust design makes it easy to integrate into new installations or retrofit projects, ensuring dependable performance over time.

Key Feature

• Power: 50W output capacity
• Voltage: 120-277V wide compatibility
• Dimmable functionality for adjustable lighting
• Stable and consistent current output
• Flicker-free and smooth operation
• High efficiency and energy-saving performance
• Protection against voltage fluctuations
• Durable and compact design
• Suitable for various LED applications
• Ideal for commercial and residential use

Download Spec Sheet
