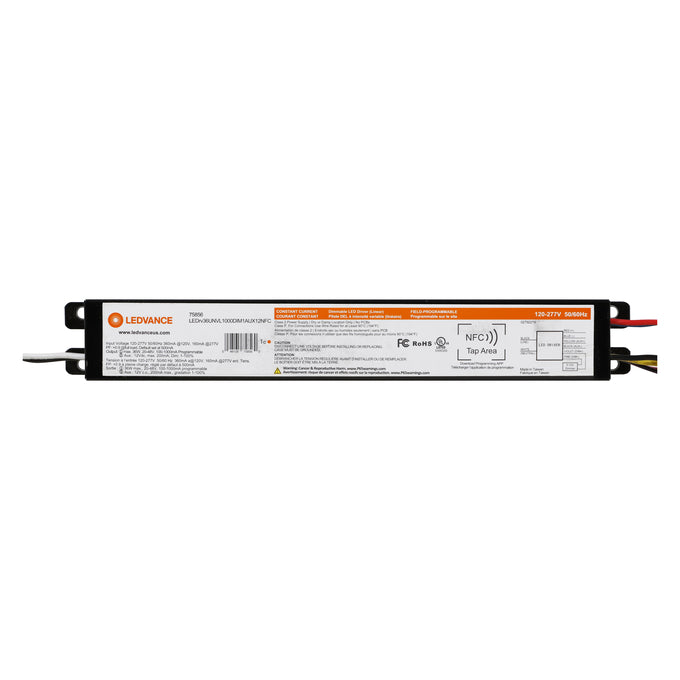

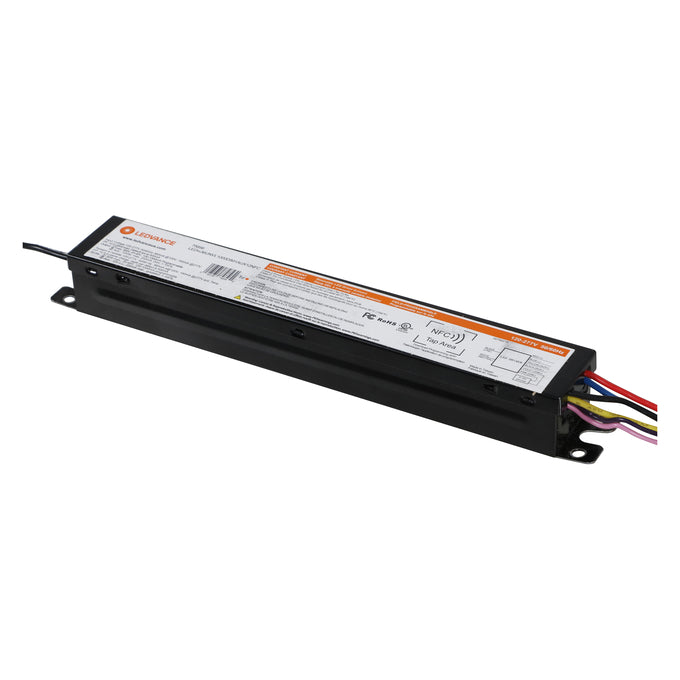

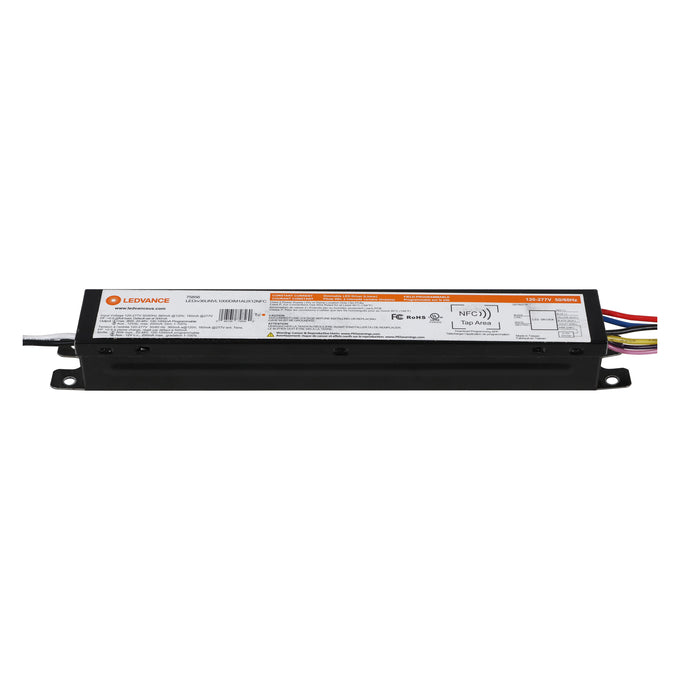

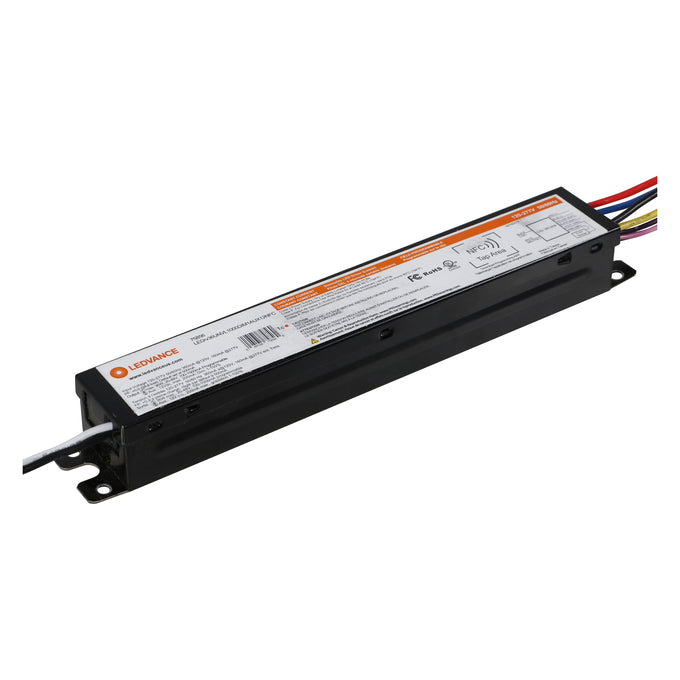

LED Driver - 120-277V - 100-1000 mA, 36W, 0-10V Dimmable - LEDrv36UNVL1000DIM1AUX12NFC

Key Specification

• Wattage: 36 W
• Input Voltage: 120–277 V
• Supply Frequency: 50–60 Hz
• Dimming: Yes (0–10V, 1–100% range)
• Output Type: Constant Current (100–1000 mA programmable, field-programmable)
• Auxiliary Output: 12V AUX
• Technology: NFC (Near-Field Communication)
• Dimensions: 9.5" (L) × 1.22" (W) × 1.1" (H)
• Weight: 1.21 lb
• Number of Lamps: 1
• Protection Rating: IP20
• Protection Class: I
• Certifications: FCC, RoHS
• Type: Linear LED Driver

This 36W LED driver is designed to provide efficient and stable power for a variety of LED lighting applications. With a universal input voltage range of 120–277V and adjustable output current from 100–1000mA, it ensures flexible compatibility. The integrated 0-10V dimming enables smooth brightness control for enhanced energy efficiency. Featuring AUX 12V output and NFC programmability, it offers convenient setup and advanced control capabilities.

Common Applications

• Commercial lighting such as offices and retail stores
• LED panels, troffers, and downlights
• Architectural and decorative lighting systems
• Indoor general lighting applications
• Retrofit and new LED fixture installations

Key Features

• Wide input voltage: 120–277V for versatile use
• Adjustable output current: 100–1000mA for flexible LED configurations
• 0-10V dimming for precise and smooth light control
• Integrated 12V AUX output for sensors and control systems
• NFC programmability for easy configuration and customization
• High efficiency design for reliable and long-lasting performance

Need help matching a driver? Text us a picture and we’ll match it fast.

Download Spec Sheet
