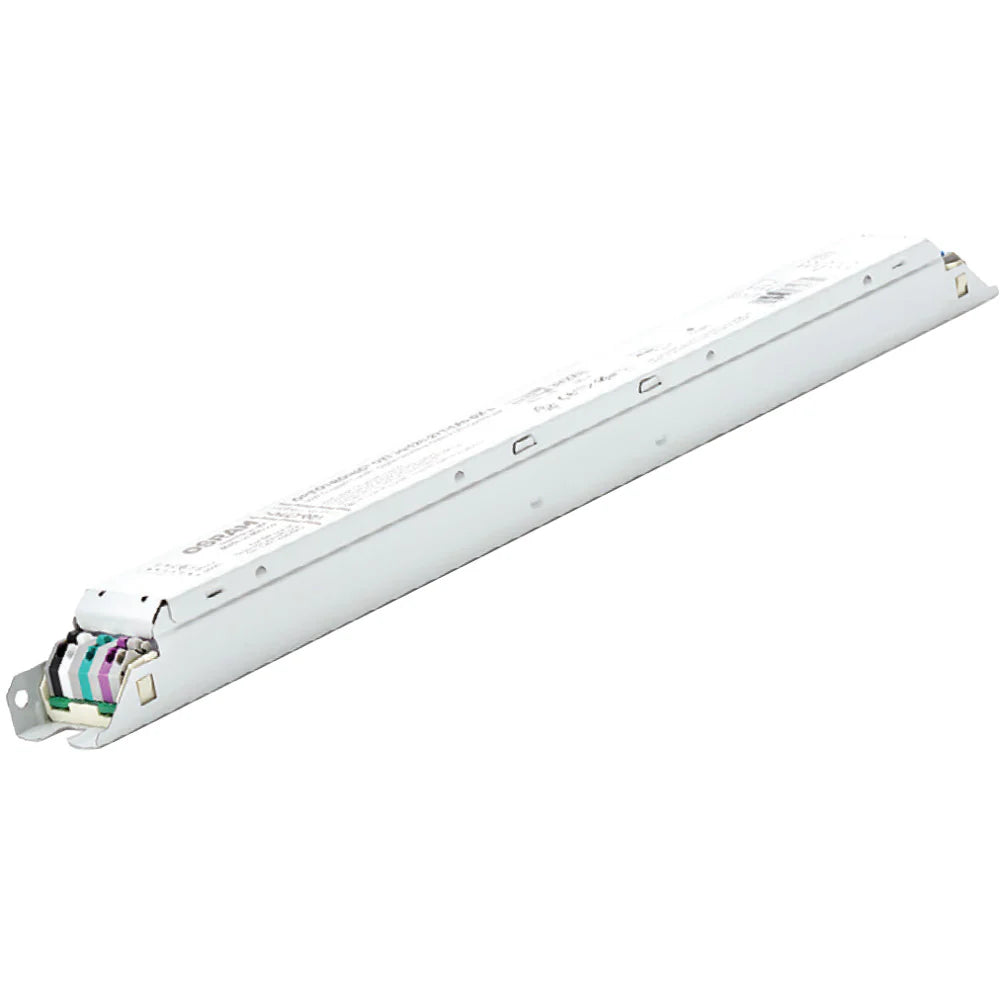

LED Driver - 120-277V, 30W, Dimmable - OTi 30/120-277/1A0 DX L

Key Specification

• Wattage: 30 W
• Input Voltage: 120–277 V
• Type of Current: AC
• Supply Frequency: 50/60 Hz
• Dimming: Yes (DALI, down to 1%)
• Output Type: Constant Current (programmable LED driver)
• Number of Lamps: 1
• Dimensions: 14.17" (L) × 1.18" (W) × 1.0" (H)
• Weight: 0.66 lb
• Protection Rating: IP20
• Protection Class: II
• Operating Conditions:
  • Max housing temperature (fault): 110°C
  • Humidity: 5–85% RH
• Certifications: RoHS, FCC, CSA
• Type: DALI Dimmable LED Driver (constant current, programmable)

The LED Driver – 120–277V, 30W is a compact and efficient dimmable power supply designed for reliable LED lighting performance. It provides stable output and consistent operation across a wide input voltage range. Engineered for durability and efficiency, it ensures long service life in various lighting environments. Its dimmable functionality allows flexible light level adjustment for enhanced control.

Common Applications:

• LED downlights and small indoor fixtures
• Residential and commercial lighting installations
• Retail and display lighting setups
• Hospitality environments such as hotels and cafés
• Retrofit projects for upgrading to energy-efficient LED systems

Key Features:

• Wide input voltage range: 120–277V for versatile use
• Power rating of 30W for low to medium-output fixtures
• Dimmable functionality for adjustable light levels
• Stable and reliable constant output performance
• High efficiency design for energy savings
• Compact and durable construction for long lifespan
