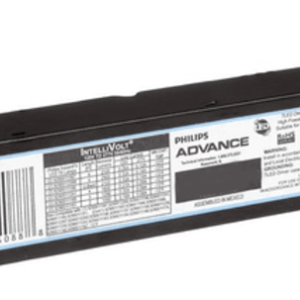

LED Driver 24W, T5HO, 120-277V. Electric Driver - ICN2S24TLED90CN35M

Key Specification

• Driver Type: T5HO LED Electronic
• Lamp Connection: Series
• Input Voltage: 120–277 V
• Input Frequency: 50/60 Hz
• Compatible Lamp Type: T5 HO LED (24W, InstantFit)
• Lamp Wattage: 24 W
• Lumens Output: 3300 – 3500 lm
• Number of Lamps: 1–2
• Input Power: 28 – 53 W
• Input Current: 0.11 – 0.44 A
• Power Factor: 0.90 – 0.99
• Total Harmonic Distortion (THD): 10 – 18%
• Minimum Start Temperature: -13°F (-25°C)
• Dimensions: 9.5" (L) × 1.3" (W) × 1.0" (H)
• Mounting Length: 8.9" (22.6 cm)
• Brand: Centium
• Status: Active

The LED Driver 24W T5HO – 120–277V is a compact and efficient electric driver designed specifically for T5HO LED tube applications. It provides stable and reliable power output, ensuring consistent illumination and optimal LED performance. Engineered for retrofit and new installations, it supports a wide voltage range for versatile use. Its durable construction ensures long-lasting operation in demanding environments.

Common Applications:

• T5HO LED tube retrofits in commercial office buildings
• Retail lighting in supermarkets and shopping malls
• Educational institutions such as schools and universities
• Healthcare facilities including hospitals and laboratories
• Industrial and warehouse lighting systems

Key Features:

• Wide input voltage range: 120–277V
• Power rating: 24W optimized for T5HO LED tubes
• Stable electric driver design for consistent performance
• High efficiency operation for reduced energy consumption
• Compact form factor for easy installation and replacement
• Reliable long-life performance for commercial applications
