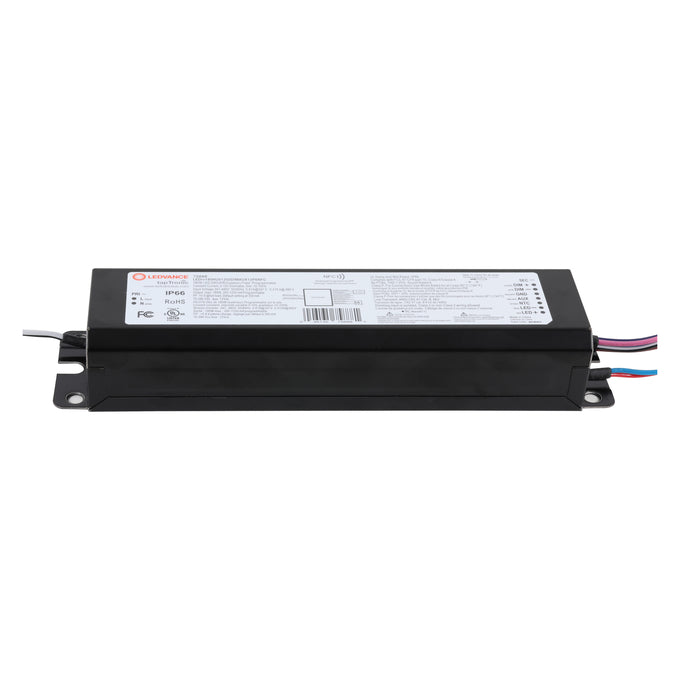

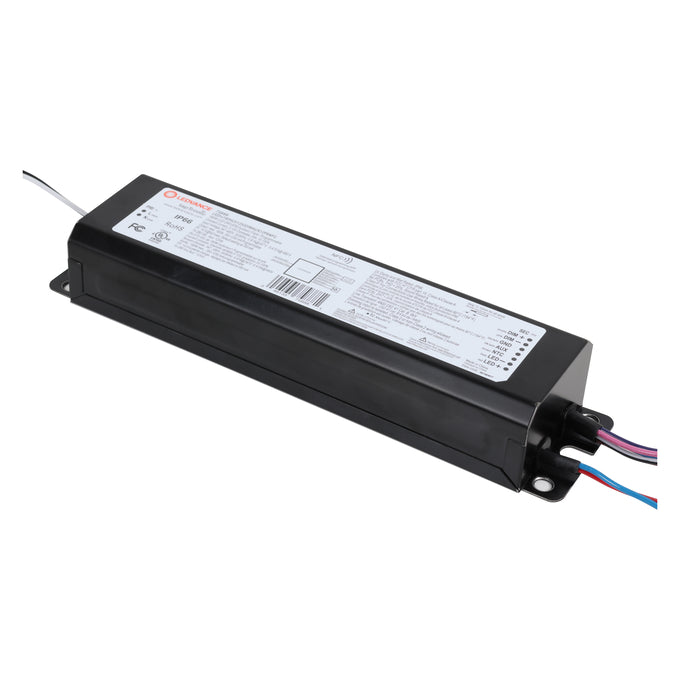

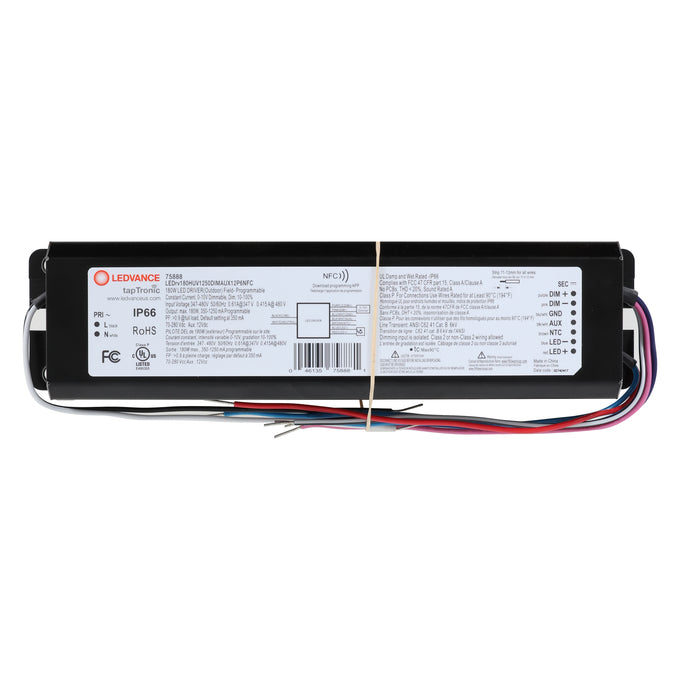

LED Driver - 277-480V - 350-1250mA, 180W, 0-10V Dimmable -LEDrv180HUV1250DIMAUX12P6NFC

Key Specification

• Wattage: 180 W
• Input Voltage: 347–480 V
• Supply Frequency: 50–60 Hz
• Dimming: Yes (0–10V, 10–100% range)
• Output Type: Constant Current (350–1250 mA programmable)
• Auxiliary Output: 12V AUX port
• Technology: NFC (Near-Field Communication)
• Dimensions: 9.47" (L) × 2.36" (W) × 1.5" (H)
• Weight: 2.2 lb
• Number of Lamps: 1
• Protection Rating: IP66
• Certifications: RoHS, FCC, cULus
• Application: Outdoor

The LED Driver – 277–480V, 350–1250mA, 180W is a robust high-wattage constant-current power supply designed for demanding commercial and industrial LED lighting systems. It delivers stable and efficient performance with a wide input voltage range, ensuring reliable operation even in heavy-duty environments. With 0–10V dimming support, it allows smooth and precise brightness control for advanced lighting applications.

Common Applications:

• High-bay lighting in large warehouses and industrial facilities
• Outdoor floodlighting for stadiums, ports, and logistics yards
• Street and highway lighting systems requiring high-output drivers
• Commercial architectural lighting with dimming control needs
• Heavy-duty LED retrofit projects in industrial infrastructure

Key Features:

• Wide input voltage range: 277–480V for industrial compatibility
• High power output: 180W suitable for high-intensity LED fixtures
• Adjustable constant current range: 350–1250mA flexibility
• 0–10V dimmable technology for smooth light control
• High efficiency design for reduced energy loss and heat generation
• AUX12P6NFC smart interface support for advanced lighting systems
