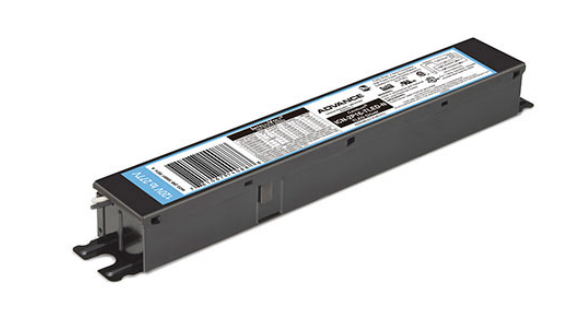

LED Driver 14W, Electronic Dimming Parallel, 120-277V, 50/60 Hz - IZT4P16TLEDSC35M

Key Specification

• Brand Name: Mark 7 0-10V
• Driver Type: Electronic Dimming
• Lamp Connection: Parallel
• Input Voltage: 120–277V
• Input Frequency: 50/60 Hz
• Status: Active
• Electrical & Performance Range (varies by model):
  • Bare Lamp Wattage: 8.9W – 14W
  • Nominal Initial Lumens: 1500 – 2100 lm
  • Minimum Start Temperature: -13°F to -25°F
  • Number of Lamps Supported: 3 or 4 lamps (depending on model)
• Electrical Operating Data:
  • Input Current (Max Output): approx. 0.36A – 0.62A range
  • Input Power (Min/Max): varies by configuration (approx. 5W – 73W range shown)
  • Total Harmonic Distortion (THD): 10%
  • Power Factor (Max Output): 0.98 – 0.99

The LED Driver 14W Electronic Dimming Parallel – 120–277V is a compact and efficient driver designed for LED tube lighting systems. It delivers stable and reliable performance using electronic parallel technology, ensuring consistent illumination in both retrofit and new installations. With integrated dimming functionality, it provides flexible brightness control for enhanced lighting comfort. Its durable design supports long-term and dependable operation.

Common Applications:

• LED tube retrofits in commercial office environments
• Retail lighting in supermarkets and shopping centers
• Educational institutions such as schools and universities
• Healthcare facilities including hospitals and clinics
• General indoor lighting upgrades requiring dimming control

Key Features:

• Wide input voltage range: 120–277V
• Power rating: 14W for efficient LED tube operation
• Electronic parallel configuration for stable performance
• Integrated dimming capability for smooth brightness adjustment
• Compatible with 50/60 Hz electrical systems
• Compact and durable construction for easy installation
