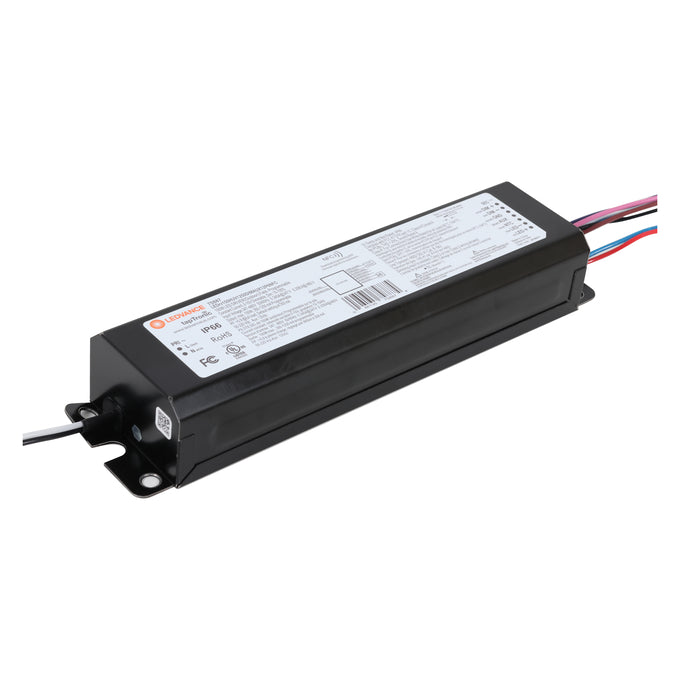

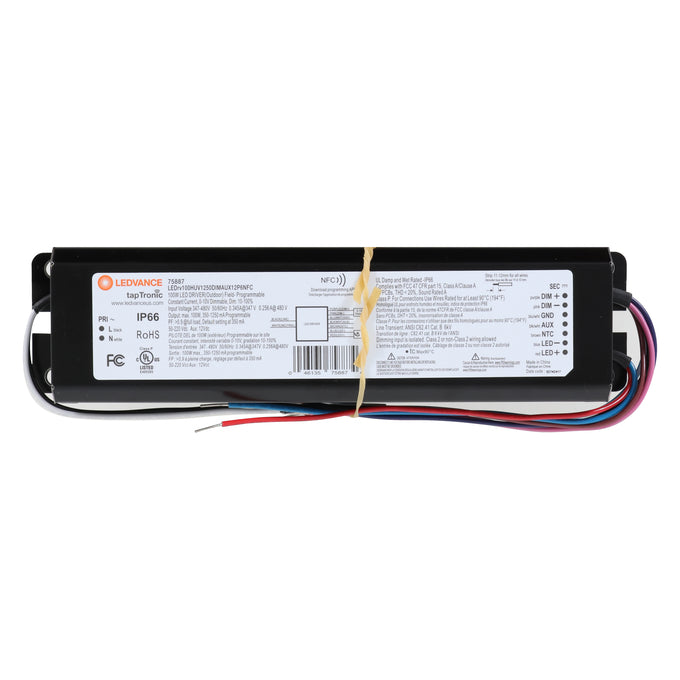

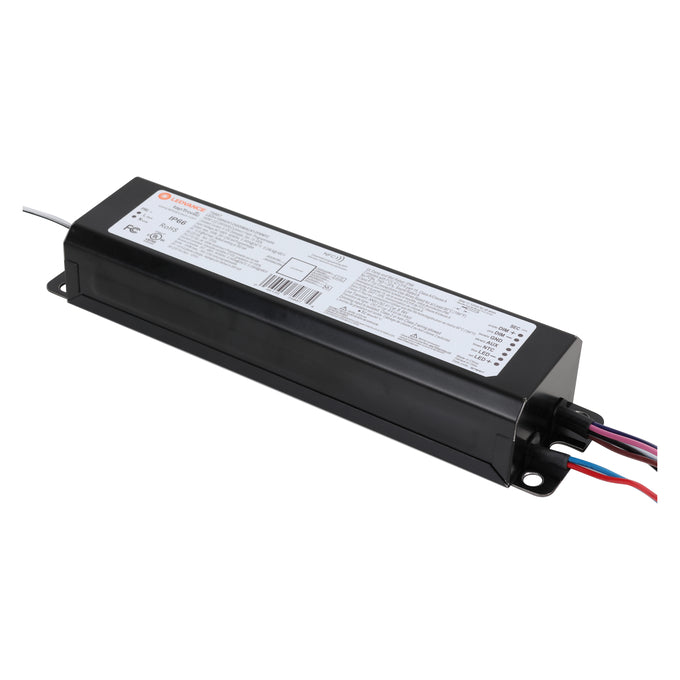

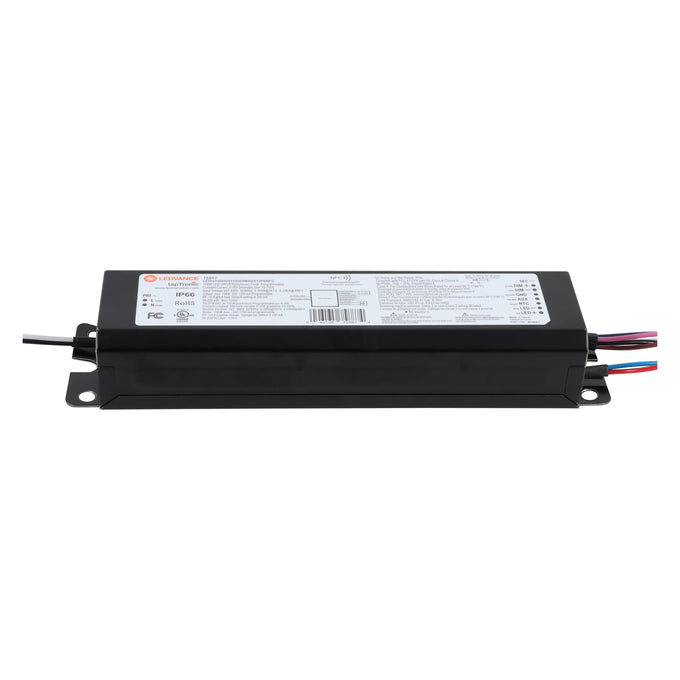

LED Driver - 277-480V - 350-1250mA, 100W, 0-10V Dimmable - LEDrv100HUV1250DIMAUX12P6NFC

Key Specification

• Wattage: 100 W
• Input Voltage: 347–480 V
• Supply Frequency: 50–60 Hz
• Dimming: Yes (0–10V, 10–100% range)
• Output Type: Constant Current (350–1250 mA programmable)
• Auxiliary Output: 12V AUX port
• Technology: NFC (Near-Field Communication)
• Dimensions: 9.47" (L) × 2.36" (W) × 1.5" (H)
• Weight: 2.2 lb
• Number of Lamps: 1
• Protection Rating: IP66
• Certifications: RoHS, FCC, cULus
• Application: Outdoor

The LED Driver – 277–480V, 350–1250mA, 100W is a high-performance, constant-current LED power supply designed for demanding commercial and industrial lighting systems. It ensures stable output with excellent efficiency and reliable operation across wide input voltage ranges. Featuring 0–10V dimming support, it enables smooth and precise light control for modern lighting applications.

Common Applications:

• High-bay industrial lighting systems in warehouses and factories
• Outdoor area lighting such as parking lots and street lighting
• Commercial LED fixtures including floodlights and wall packs
• Retail and exhibition lighting setups requiring adjustable brightness
• Architectural and large-scale building illumination projects

Key Features:

• Wide input voltage range: 277–480V for industrial-grade compatibility
• Adjustable constant current output: 350–1250mA flexibility
• Maximum power capacity of 100W for high-output LED fixtures
• 0–10V dimming capability for smooth brightness control
• High efficiency design for reduced energy consumption
• AUX12P6NFC smart-ready interface for advanced lighting control integration
