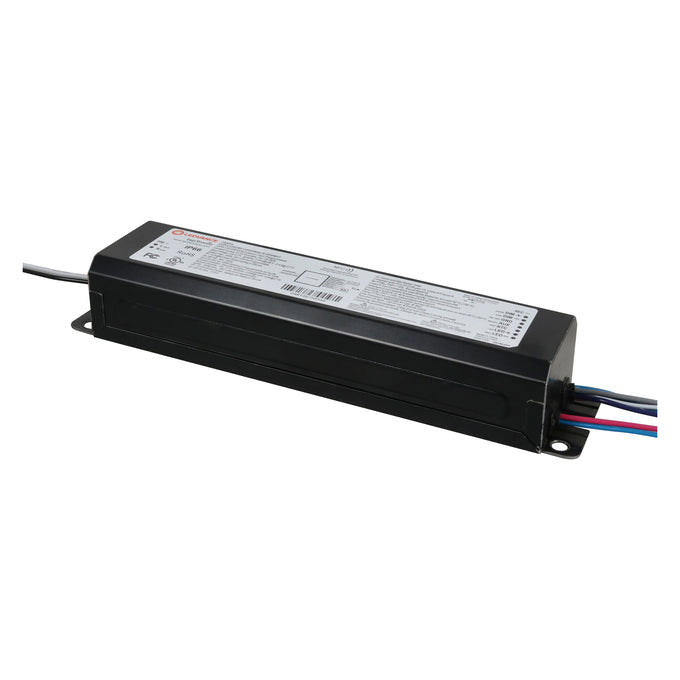

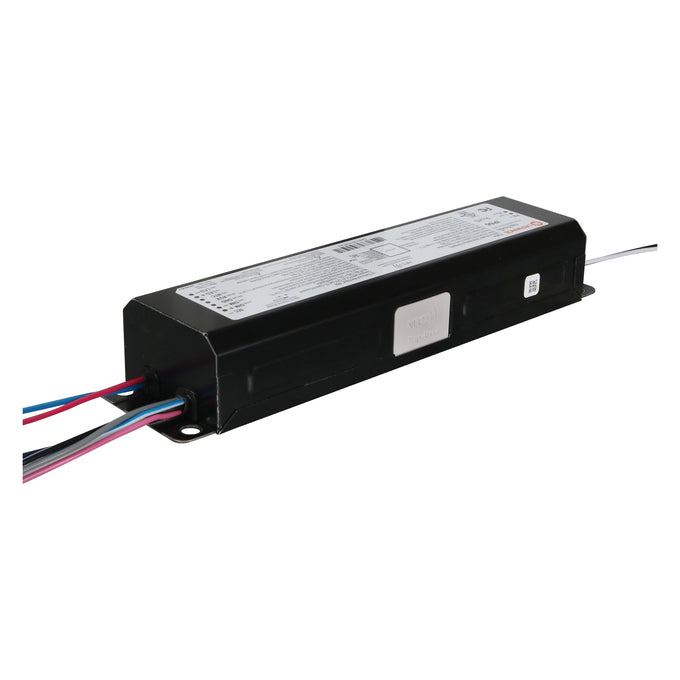

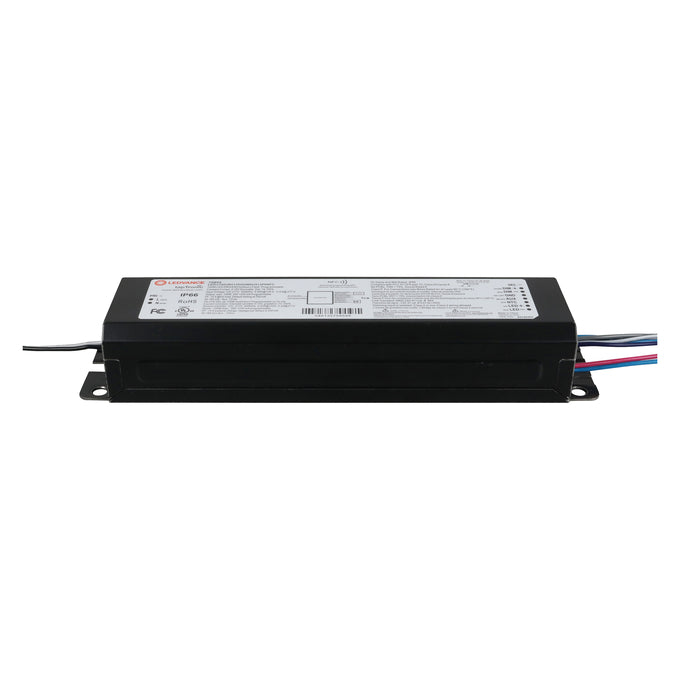

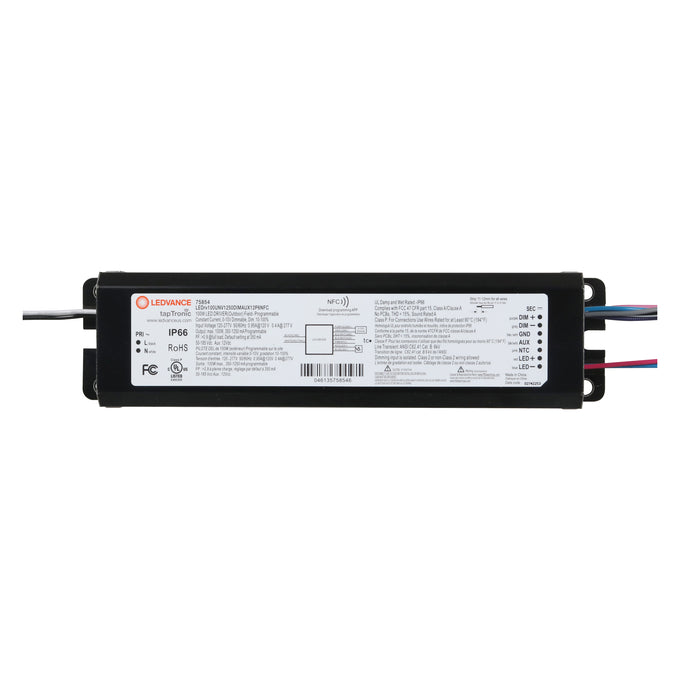

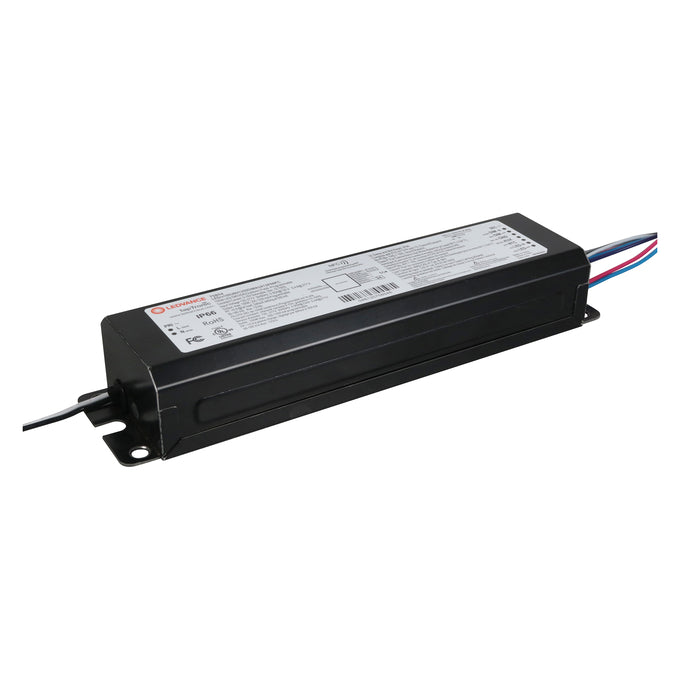

Name: LED Driver - 120-277V - 350 -1250mA, 100W, 0-10V Dimmable - LEDrv100UNV1250DIMAUX12P6NFC
Brand: Sylvania / LEDVANCE
SKU: 75854
Price: 75.11 USD
Availability: InStock

Key Specification

Wattage: 100 W

Input Voltage: 120–277 V

Supply Frequency: 50–60 Hz

Dimming: Yes (0–10V, 10–100% range)

Output Type: Constant Current (350–1250 mA programmable)

Auxiliary Output: 12V AUX

Technology: NFC (Near-Field Communication)

Dimensions: 9.47" (L) × 2.4" (W) × 1.5" (H)

Weight: 2.2 lb

Number of Lamps: 1

Protection Rating: IP67

Certifications: RoHS, FCC

Application: Outdoor

This 100W LED driver is built for high-performance and reliable operation in demanding LED lighting applications. It supports a wide input voltage range of 120–277V and delivers adjustable output current from 350–1250mA for flexible system compatibility. The integrated 0-10V dimming ensures smooth and efficient brightness control. Equipped with AUX 12V output and NFC programmability, it allows advanced control and easy customization.

Common Applications

Commercial lighting such as offices, malls, and large retail spaces
LED high bays, panels, and troffers
Architectural and outdoor lighting systems
Industrial and warehouse lighting installations
Retrofit and new construction LED fixtures

Key Features

Wide input voltage: 120–277V for versatile applications
Adjustable output current: 350–1250mA for flexible LED configurations
0-10V dimming for smooth and precise light control
Integrated 12V AUX output for sensors and smart controls
NFC programmability for quick and easy setup
High efficiency and robust design for long-lasting performance
