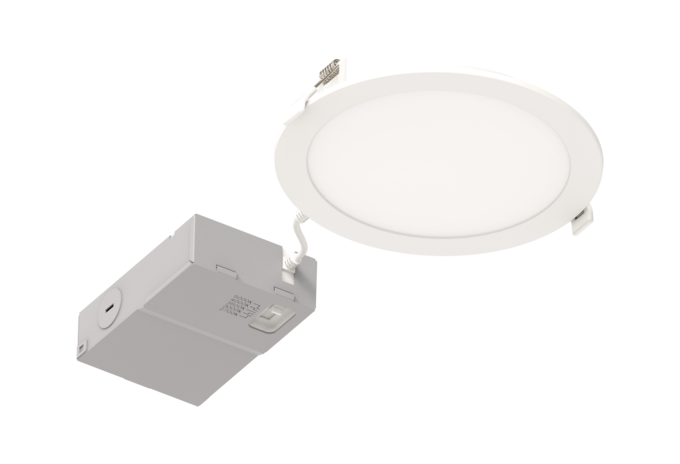

LED Downlight – 6", 12W, Selectable CCT (3000K/4000K/5000K), 120-277V – LEDMD6R3A1200ST9SC3WH

Key Specification

• Wattage: 14 W
• Voltage: 120 V
• Power Factor: ≥0.90
• THD: < 20%
• Lumens Output: 1200 lm
• Efficacy: 75 lm/W
• Color Temperature (CCT): 2700K / 3000K / 3500K / 4000K / 5000K (Selectable)
• Color Rendering Index (CRI): 90
• Luminaire Type: Downlight
• Dimming: Yes (Phase Cut / Triac)
• Mounting Type: Recessed
• Dimensions: 6.89 in (Dia) × 0.9 in (Height)
• Weight: 0.67 lb
• Housing Material: Plastic
• Finish Color: White
• Operating Temperature Range: -20°C to +40°C
• Operating Life: 50,000 hours
• Mercury Content: 0.0 mg
• Certifications: RoHS, FCC
• Energy Star Rated: Yes
• Warranty: 5 years

The LED Downlight – 6", 12W with selectable CCT offers versatile and energy-efficient lighting for modern spaces. With adjustable color temperatures of 3000K, 4000K, and 5000K, it allows you to customize the lighting to suit different environments.
Designed for 120-277V operation, it ensures wide compatibility across residential and commercial installations. Its sleek design provides clean, uniform illumination.
This downlight is a reliable and long-lasting solution, ideal for upgrading traditional recessed lighting systems.

Ideal Applications

• Residential living spaces and bedrooms
• Kitchens and dining areas
• Offices and commercial interiors
• Retail stores and showrooms
• Hallways and corridors
• Hotels and hospitality environments

Features & What’s Included

This LED downlight is engineered for flexibility and efficiency, delivering 12W of consistent and high-quality illumination. The selectable CCT feature (3000K/4000K/5000K) allows users to easily switch between warm, neutral, and daylight tones, making it adaptable to different settings and preferences. Its design ensures smooth, even light distribution, reducing glare and enhancing overall visual comfort.

Built for durability and ease of installation, this downlight operates on a wide voltage range of 120-277V, making it suitable for a variety of electrical systems. It is designed to fit standard 6-inch recessed housings, allowing for quick and hassle-free installation. With its long lifespan and energy-saving performance, it reduces maintenance needs while providing reliable lighting for years to come.

Key Feature

• Power: 12W energy-efficient performance
• Voltage: 120-277V wide compatibility
• Selectable CCT: 3000K / 4000K / 5000K
• Size: 6-inch standard downlight
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation in recessed housings
• Suitable for residential and commercial use
• Modern, clean design for various interiors
