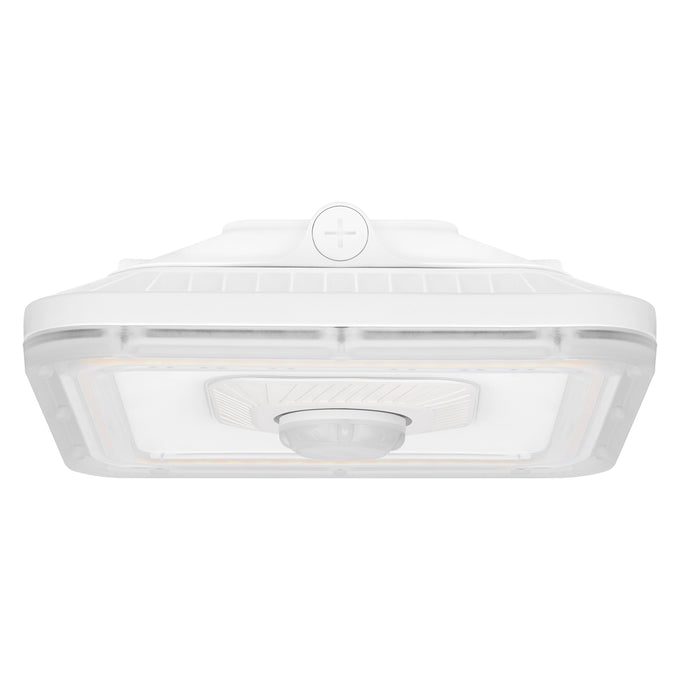

LED Canopy Light – 60W, Selectable CCT (3000K/4000K/5000K), 120-277V, White – CANOPYPS060UNHD8SC2S10WHP

Key Specification

• Wattage: 40 / 50 / 60 W (selectable)
• Voltage Range: 120–347 V
• Power Factor: ≥ 0.90
• Total Harmonic Distortion: < 20%
• Lumens Output: 6400 / 8000 / 9600 lm
• Efficacy: 160 lm/W
• Color Temperature (CCT): 3000K / 4000K / 5000K (selectable)
• Color Rendering Index (CRI): 80
• Luminaire Type: Canopy
• Dimming: Yes (0-10V)
• Mounting: Surface
• Indoor/Outdoor: Outdoor
• Dimensions: 10.43 in (L) × 10.43 in (W) × 3.46 in (H)
• Weight: 5.51 lb
• Housing Material: Aluminum
• Finish / Color: White
• Mercury Content: 0.0 mg
• Operating Temperature Range: -20°C to +50°C
• Maximum Operating Temperature: 122°F
• Minimum Operating Temperature: -4°F
• Average Rated Life: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Warranty: 5 Years
• Replaceable Light Source: No
• Lamp Type: SMD

The LED Canopy Light – 60W is a powerful and efficient lighting solution designed for covered outdoor environments. It features selectable CCT (3000K/4000K/5000K) to provide customizable lighting tones. The clean white finish delivers a modern and professional appearance. Operating on 120–277V, it ensures reliable and versatile performance. Ideal for bright and uniform illumination in larger canopy areas.

Ideal Applications

• Gas stations and fuel canopies
• Parking garages and covered parking areas
• Building entrances and overhangs
• Loading docks and service zones
• Walkways and covered outdoor passages
• Commercial and retail canopy structures

What’s Included / Features

This LED canopy light is engineered to deliver strong, high-output illumination for larger or high-traffic canopy applications. With a 60W power rating, it provides enhanced brightness and coverage while maintaining energy efficiency. The selectable color temperature (3000K, 4000K, 5000K) allows users to adjust the lighting ambiance to suit different environments, from warm tones to bright daylight. This flexibility makes it suitable for both functional and aesthetic lighting needs.

Constructed with a durable, weather-resistant housing, this fixture is designed to perform reliably in outdoor conditions. The clean white finish offers a sleek and modern look, making it an excellent choice for contemporary installations. Its wide voltage compatibility of 120–277V ensures easy integration into various electrical systems. This canopy light serves as a highly efficient replacement for traditional fixtures, helping reduce energy consumption, lower maintenance costs, and deliver consistent performance over time.

Key Features

• Power: 60W high-output performance
• Selectable CCT: 3000K / 4000K / 5000K
• Wide voltage range: 120–277V
• Clean white finish for modern aesthetics
• Bright, uniform light distribution
• Durable and weather-resistant construction
• Energy-efficient with long lifespan
• Easy installation and low maintenance


Download Spec Sheet
