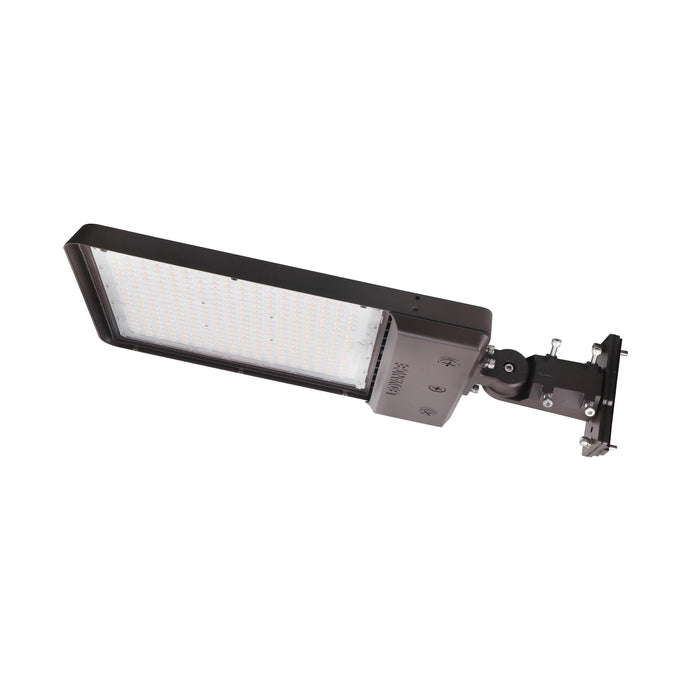

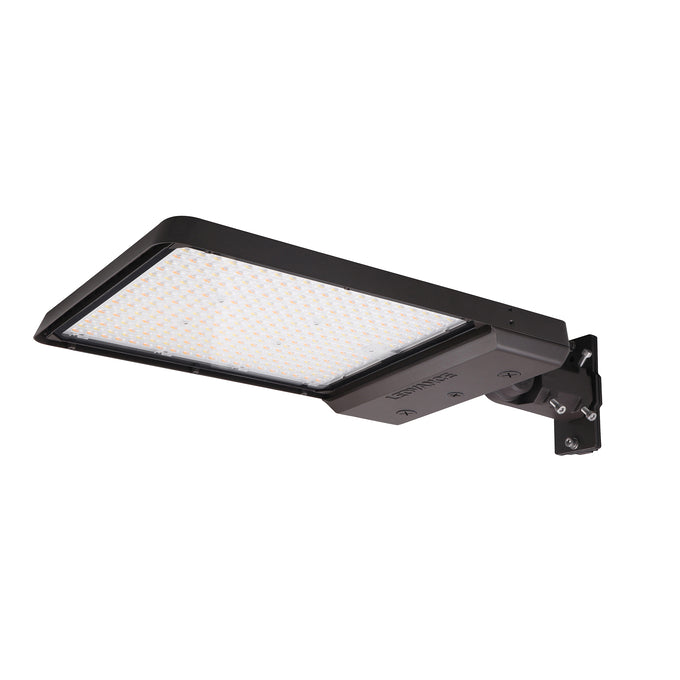

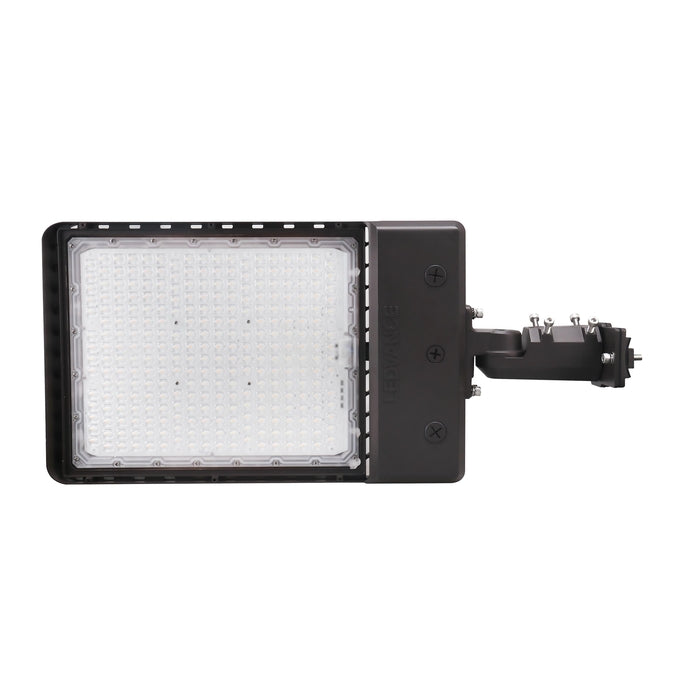

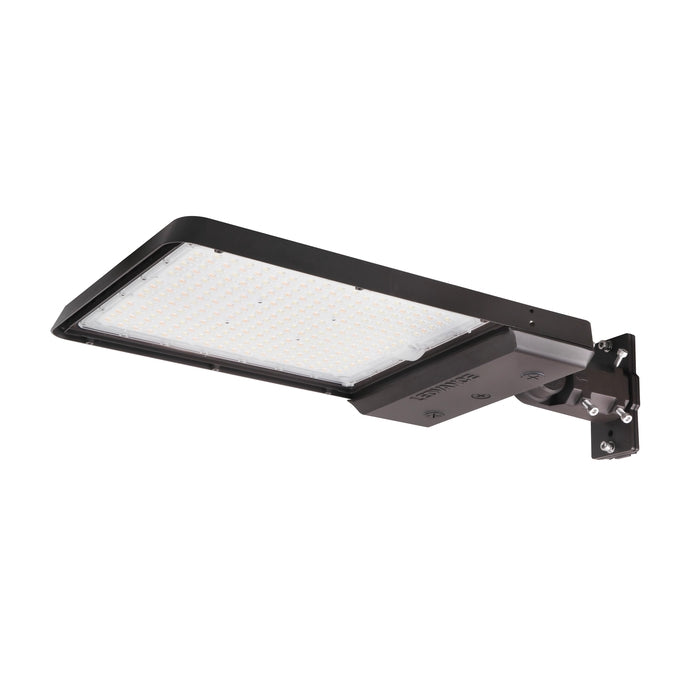

LED Area Light – 80/100/150W, Selectable CCT (3000K/4000K/5000K), 120-277V, Dimmable – AREAFLD6AS150UNHDSC2ADJBZ[G3]

Key Specification

• Wattage: 90W / 120W / 150W (Selectable)
• Voltage: 120–347 V
• Power Factor: ≥0.90
• THD: <20%
• Lumens: 13,500 / 18,000 / 22,500 lm
• Efficacy: 150 lm/W
• Color Temperature: 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Area Light
• Dimming: Yes (0–10V)
• Mounting Type: Surface Mount
• Application: Outdoor
• Housing Material: Aluminum (Bronze Finish)
• Dimensions: 24.75 × 6.3 × 10.62 in
• Weight: 10.58 lb
• Operating Temperature: -40°F to 122°F
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Warranty: 5 Years

The LED Area Light – 80/100/150W is a powerful and adaptable outdoor lighting solution designed for large-scale applications. Featuring selectable wattage and CCT (3000K/4000K/5000K), it allows precise control over brightness and light tone. Its rugged construction ensures reliable performance in demanding environments. With 120–277V compatibility and dimmable functionality, it delivers efficiency, flexibility, and long-term savings. Ideal for high-output, wide-area illumination.

Ideal Applications

• Large parking lots and garages
• Highways and roadways
• Industrial yards and facilities
• Commercial complexes and campuses
• Outdoor security and perimeter lighting
• Sports courts and recreational areas

What’s Included / Features

This LED area light is designed for maximum performance, offering selectable wattage options of 80W, 100W, and 150W to meet varying lighting requirements. The adjustable color temperature settings (3000K, 4000K, 5000K) provide flexibility to create the desired lighting environment, whether warm, neutral, or daylight. Its dimmable capability enhances energy efficiency by allowing users to control light output based on specific needs.

Engineered with a durable, weather-resistant housing, this fixture is built to withstand harsh outdoor conditions while maintaining consistent performance. The wide input voltage range of 120–277V ensures compatibility with different electrical systems, making it suitable for diverse installations. It serves as an excellent replacement for traditional high-wattage HID fixtures, significantly reducing energy consumption and maintenance costs.

Key Features

• Selectable wattage: 80W / 100W / 150W
• Selectable CCT: 3000K / 4000K / 5000K
• Wide voltage range: 120–277V
• Dimmable for flexible lighting control
• Heavy-duty, weather-resistant construction
• High lumen output for large-area coverage
• Energy-efficient with long lifespan
• Easy installation and reduced maintenance

Download Spec Sheet
