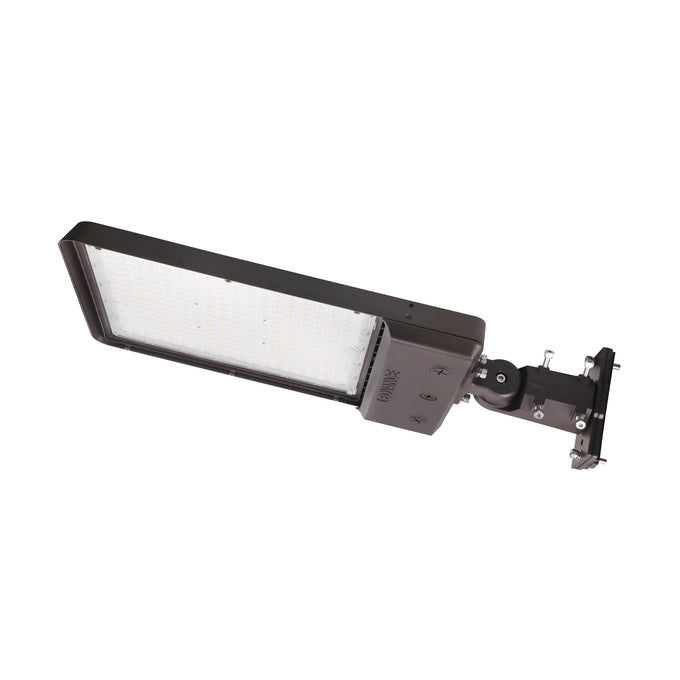

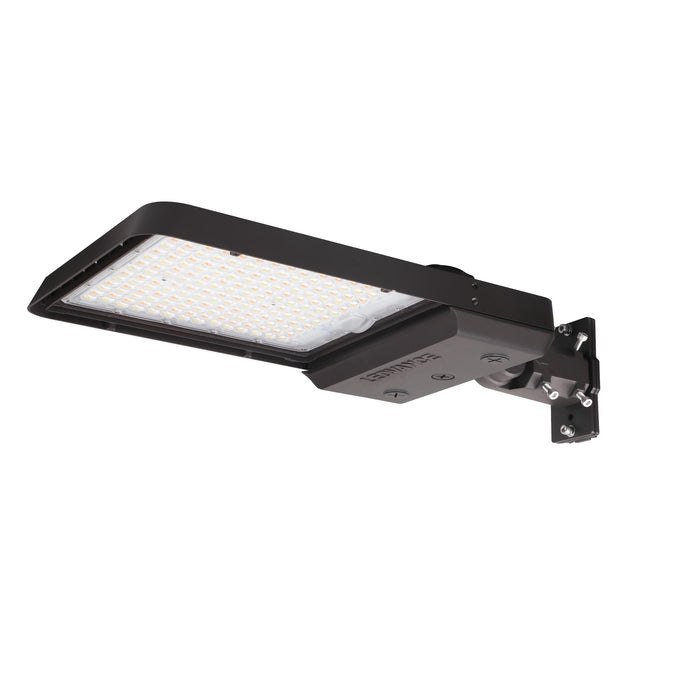

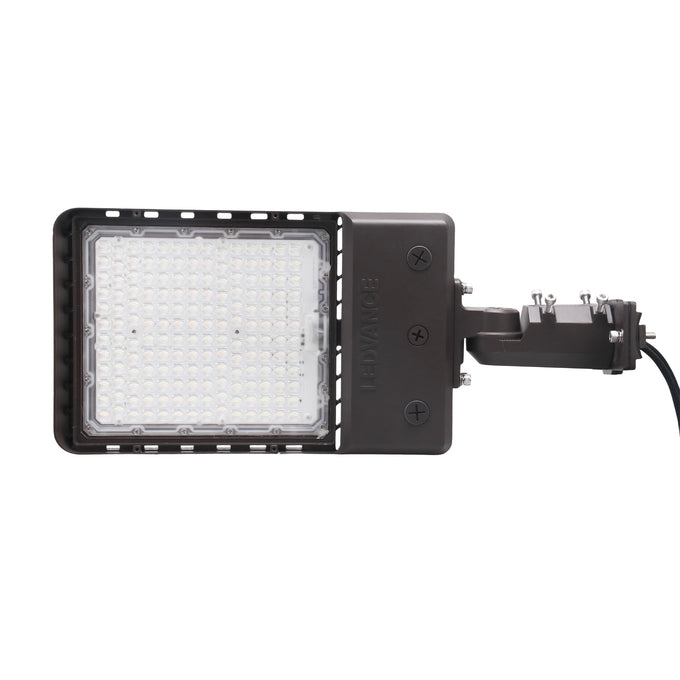

LED Area Light – 40/60/80W, Selectable CCT (3000K/4000K/5000K), 120-277V, Dimmable – AREAFLD6AS080UNHDSC2ADJBZ[G3]

Key Specification

• Wattage: 40W / 60W / 80W (Selectable)
• Voltage: 120–347 V
• Power Factor: ≥0.90
• THD: <20%
• Lumens: 6000 / 9000 / 12000 lm
• Efficacy: 150 lm/W
• Color Temperature: 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Area Light
• Dimming: Yes (0–10V)
• Mounting Type: Surface Mount
• Application: Outdoor
• Housing Material: Aluminum (Bronze Finish)
• Dimensions: 24.75 × 6.3 × 10.62 in
• Weight: 10.58 lb
• Operating Temperature: -40°F to 122°F
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Warranty: 5 Years

The LED Area Light – 40/60/80W is a versatile and energy-efficient lighting solution designed for outdoor and commercial use. With selectable wattage and CCT (3000K/4000K/5000K), it offers flexibility to match different lighting needs. Its durable construction ensures long-lasting performance in various environments. Operating on 120–277V with dimmable capability, it delivers reliable and customizable illumination. Ideal for enhancing visibility, safety, and energy savings.

Ideal Applications

• Parking lots and garages
• Streets and roadways
• Building perimeters
• Warehouses and industrial facilities
• Outdoor security lighting
• Commercial complexes and campuses

What’s Included / Features

This LED area light is engineered for performance and adaptability, featuring selectable wattage options (40W, 60W, 80W) that allow users to adjust brightness levels according to specific project requirements. The selectable color temperature (3000K, 4000K, 5000K) ensures the right ambiance, from warm lighting to bright daylight output. Its dimmable functionality provides additional control over energy consumption and lighting intensity, making it suitable for both functional and aesthetic purposes.

Built to withstand outdoor conditions, the fixture is designed with a robust housing that ensures durability and long service life. The wide input voltage range of 120–277V supports various electrical systems, making installation flexible and convenient. This area light is an efficient replacement for traditional HID fixtures, offering significant energy savings and reduced maintenance costs over time.

Key Features

• Selectable wattage: 40W / 60W / 80W
• Selectable CCT: 3000K / 4000K / 5000K
• Wide voltage range: 120–277V
• Dimmable for energy control
• Durable and weather-resistant design
• High efficiency and long lifespan
• Easy installation and low maintenance

Download Spec Sheet
