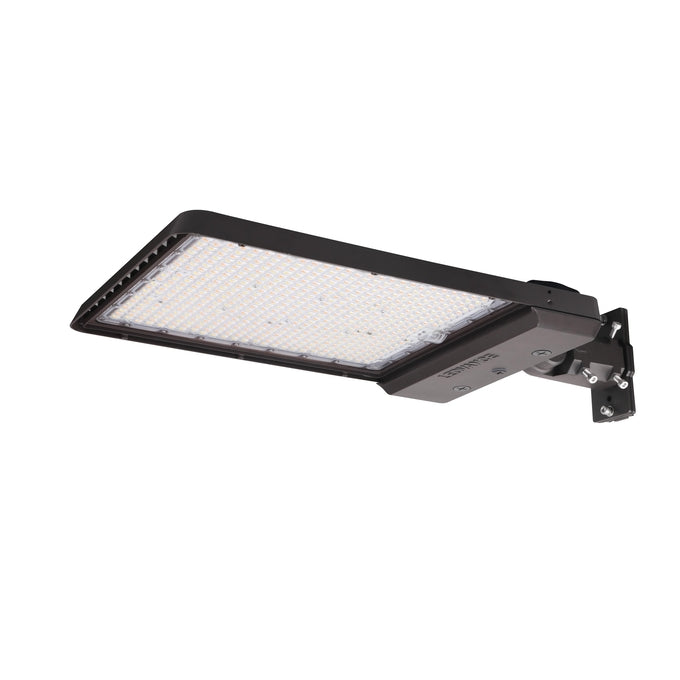

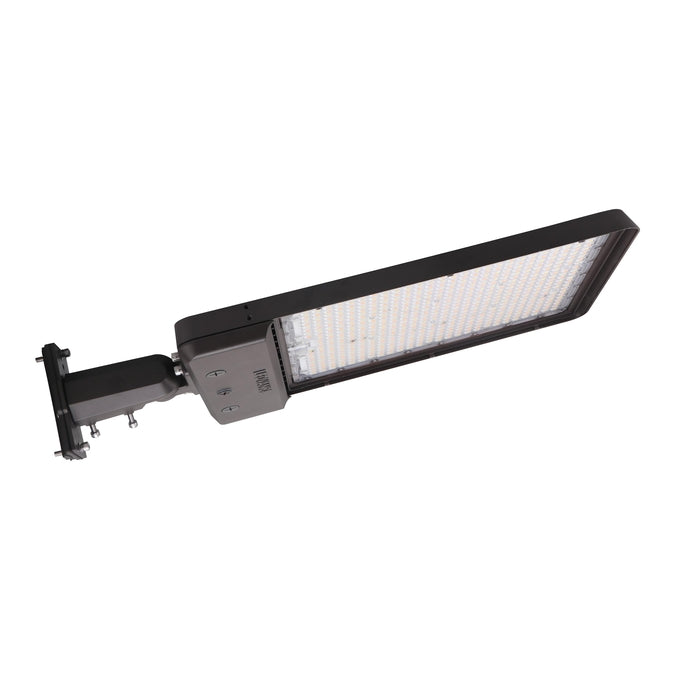

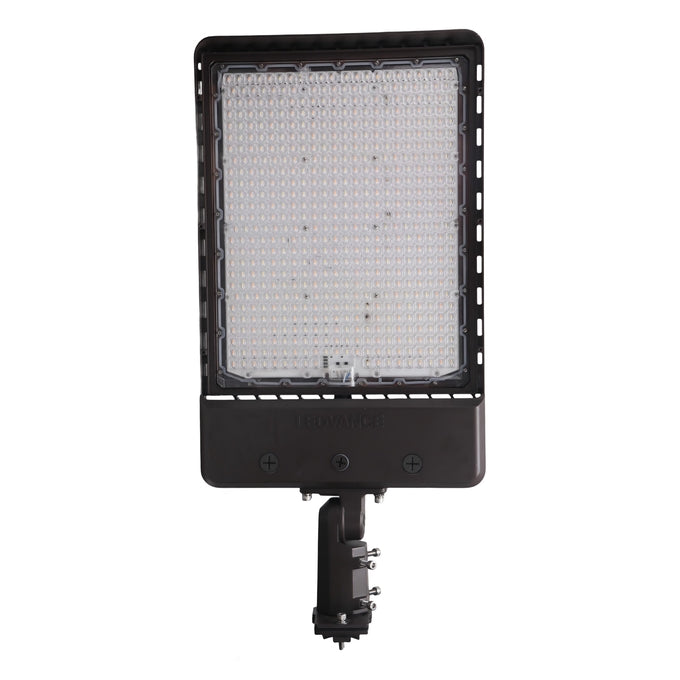

LED Area Light – 150/240/300W, Selectable CCT (3000K/4000K/5000K), 120-277V, Dimmable – AREAFLD6AS300UNHDSC2ADJBZ[G3]

Key Specification

• Wattage: 180W / 240W / 300W (Selectable)
• Voltage: 120–347 V
• Power Factor: ≥0.90
• THD: <20%
• Lumens: 27,000 / 36,000 / 45,000 lm
• Efficacy: 150 lm/W
• Color Temperature: 3000K / 4000K / 5000K (Selectable)
• CRI: 80
• Luminaire Type: Area Light
• Dimming: Yes (0–10V)
• Mounting Type: Surface Mount
• Application: Outdoor
• Housing Material: Aluminum (Bronze Finish)
• Dimensions: 27.68 × 6.3 × 13.37 in
• Weight: 13.67 lb
• Operating Temperature: -40°F to 122°F
• Lifespan: 100,000 hours
• Certifications: RoHS, FCC, cULus
• Warranty: 5 Years

The LED Area Light – 150/240/300W is a high-performance lighting solution built for large outdoor and industrial spaces. With selectable wattage and CCT (3000K/4000K/5000K), it provides exceptional flexibility and control over illumination. Its robust, weather-resistant design ensures reliable operation in demanding conditions. Operating on 120–277V with dimmable capability, it delivers powerful, energy-efficient lighting. Ideal for maximizing visibility and coverage in wide areas.

Ideal Applications

• Stadiums and large sports facilities
• High mast and roadway lighting
• Airports and shipping yards
• Large parking lots and distribution centers
• Industrial plants and warehouses
• Outdoor security and perimeter lighting

What’s Included / Features

This LED area light is engineered for high-output performance, offering selectable wattage options of 150W, 240W, and 300W to suit a wide range of large-scale lighting needs. The selectable color temperature (3000K, 4000K, 5000K) allows users to customize the lighting environment, from warm tones to bright daylight illumination. Its dimmable functionality provides additional flexibility, helping to optimize energy usage and adapt lighting levels as required.

Built with a heavy-duty, weather-resistant housing, this fixture is designed to perform reliably in harsh outdoor environments. The wide input voltage range of 120–277V ensures compatibility with various electrical systems, making installation straightforward and versatile. It is an ideal replacement for traditional high-wattage HID fixtures, delivering significant energy savings, reduced maintenance, and long operational life.

Key Features

• Selectable wattage: 150W / 240W / 300W
• Selectable CCT: 3000K / 4000K / 5000K
• Wide voltage range: 120–277V
• Dimmable for advanced lighting control
• Heavy-duty, weather-resistant construction
• High lumen output for maximum area coverage
• Energy-efficient with extended lifespan
• Easy installation and low maintenance

Download Spec Sheet
