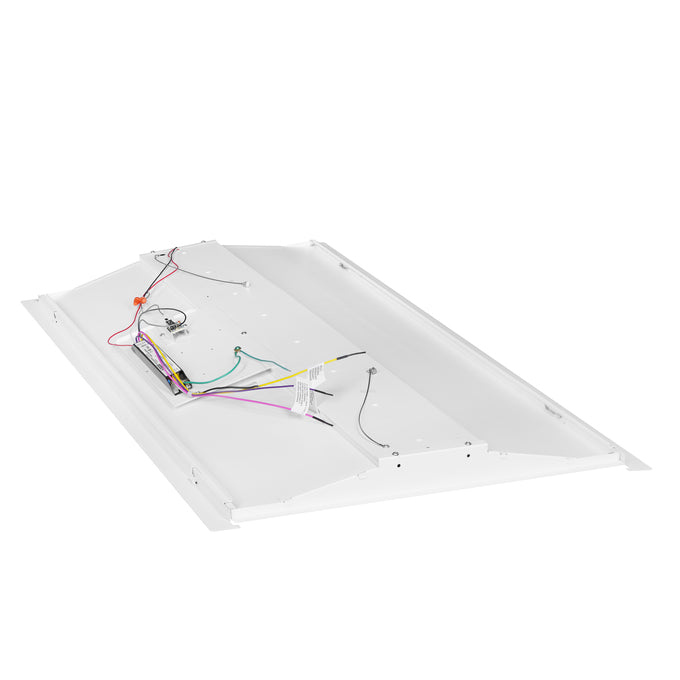

Direct / Indirect Center Basket Retrofit 2x4 – 44W, Selectable CCT, 120-277V – RDORKIT6AS044UNHD8SC724UWH

Key Specification

• Wattage (Selectable): 24W / 32W / 39W / 44W
• Voltage Range: 120–347 V
• Power Factor: ≥0.90
• THD: < 20%
• Lumens Output: 3000 / 4000 / 4875 / 5500 lm
• Efficacy: 125 lm/W
• Color Temperature (CCT): 3500K / 4000K / 5000K (Selectable)
• CRI: >80
• Luminaire Type: Retrofit (2x4)
• Dimming: Yes (0–10V)
• Mounting: Recessed
• Application: Indoor
• Housing Material: Steel
• Finish: White
• Dimensions: 47.76 in (L) × 23.88 in (W) × 1.98 in (H)
• Weight: 12.35 lb
• Operating Temperature: -20°C to +40°C
• Lifespan: 50,000 hours
• Certifications: RoHS, FCC, cULus
• Light Source Type: Non-replaceable

The Direct / Indirect Center Basket Retrofit – 44W with selectable CCT delivers high-performance, energy-efficient lighting for upgrading existing fixtures. It provides balanced direct and indirect illumination for enhanced visual comfort and reduced glare.
With selectable color temperatures, it allows flexible lighting customization to suit various environments. Designed for 120-277V operation, it ensures broad compatibility across different systems.
This retrofit solution improves lighting quality while lowering energy usage and maintenance costs.

Ideal Applications

• Office buildings and corporate workspaces
• Schools and educational institutions
• Hospitals and healthcare facilities
• Retail stores and commercial interiors
• Hallways, corridors, and common areas
• Government and institutional buildings

Features & What’s Included

This center basket retrofit is designed to upgrade existing 6-inch fluorescent fixtures into a modern LED lighting solution. Operating at 44W, it delivers powerful and uniform illumination with a combination of direct and indirect light, helping reduce glare and create a comfortable visual environment. The selectable CCT feature allows users to switch between different color temperatures, making it adaptable to a wide range of lighting requirements and preferences.

Engineered for versatility and long-term performance, this retrofit operates on a wide voltage range of 120-277V, ensuring compatibility with various electrical systems. It is designed for easy installation into existing fixtures, reducing installation time and labor costs. With its durable construction and efficient LED technology, it offers long-lasting performance while significantly lowering maintenance needs and energy consumption.

Key Feature

• Power: 44W high-efficiency performance
• Voltage: 120-277V wide compatibility
• Selectable CCT for customizable lighting
• Direct and indirect light distribution
• 6" retrofit design
• Uniform and glare-reduced illumination
• Flicker-free and stable lighting
• Long lifespan for reduced maintenance
• Easy installation in existing fixtures
• Ideal for commercial and institutional use

Download Spec Sheet
